Summary

In order to improve the level of automation and control level, domestic large-scale Chinese medicine group and major pharmaceutical companies have invested a large amount of funds for the renovation of production plants and equipment, and the design scale of traditional Chinese medicine extraction is also expanding, from the annual extraction capacity of hundreds of tons, to thousands tons and even tens of thousands of tons; traditional extraction method of manual feeding and dregs discharging cannot meet the needs of large-scale production of Chinese medicine. We, CHENGDONG MEDICINE MACHINE, base on our many years of pharmaceutical equipment design and manufacturing experiences, launch the DIGITAL AUTOMATIC FEEDING AND DREG DISCHARING EXTRACTION PRODUCTION LINE and realize the PIPELINING, CONTINUOUS, AUTOMATION and INTELLIGENT of traditional Chinese medicine extraction Iine of FEEDING, DECOCTION, DREG DISCHARGING, DREG SQUEEZING etc. operation unit.

Work Process

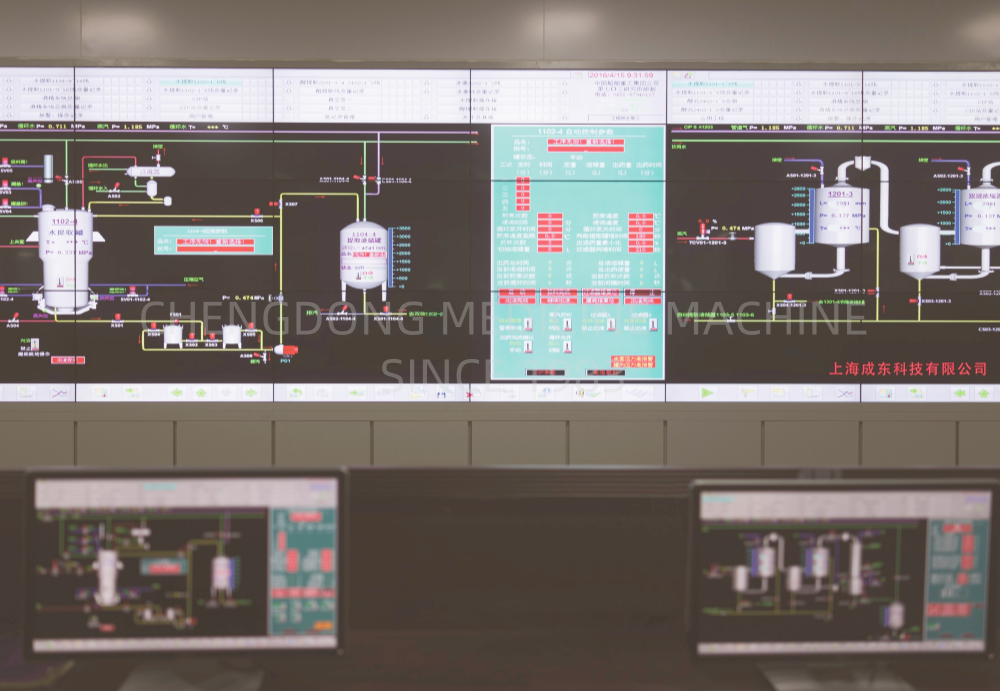

The whole process of the production line using the "Central Control Room" of the microcomputer intelligent operation, the system accurately control the material feeding until the feeding port of the extraction tank. Extraction tank adopts our own patented technology, filtration device is set at the discharge port of the extraction tank in order to separate the dreg and extract solution after extraction; a screw extruder is using for dregs separation, dregs from each extraction tank directly go into the screw extruder for pressed drying and then finally dregs are delivery to the dreg truck. Traditional Chinese medicine digital automatic feeding and dreg discharging extraction production line achieves the automatic, digital management and control from the feeding, watering, extraction, circulation, liquid discharge, material discharge, filtration, dregs extrusion, dreg discharge, automatic cleaning etc., inline with (GMP)standards.

Feature

Functions of automated extraction tank: automatic water (alcohol) feeding, automatic heating, heat preservation, immersion, timing, steam pressure automatic regulation, and automatic decoction, automatic circulation, automatic extract discharging, automatic dreg discharging, automatic cleaning, automatic production reports etc.
